What is a Worm Gearbox and How Does it Work?

A Worm Gearbox is a unique type of gear system. It consists of a worm, which resembles a screw, and a worm wheel. This design allows for high torque reduction and smooth operation. Many industries rely on worm gearboxes for their reliable performance.

In applications that require precise motion control, worm gearboxes excel. They can handle heavy loads effectively. However, they do have some drawbacks. Their efficiency can be lower than other gear types. Overheating can also be an issue in high-load situations.

Understanding the workings of a Worm Gearbox is crucial. It serves diverse applications, from automotive to manufacturing. By examining its structure and limitations, we can appreciate its role in mechanical systems. Each component has its function, yet achieving optimal performance can pose challenges. The interplay between the worm and wheel highlights the balance of power and potential inefficiencies.

Table of Contents [Hide]

1 What is a Worm Gearbox? Definition and Structure Overview

2 Key Components of a Worm Gearbox and Their Functions

3 How Worm Gearboxes Work: The Mechanics of Power Transmission

4 Advantages of Using Worm Gearboxes in Industrial Applications

5 Typical Efficiency Rates and Performance Metrics of Worm Gearboxes

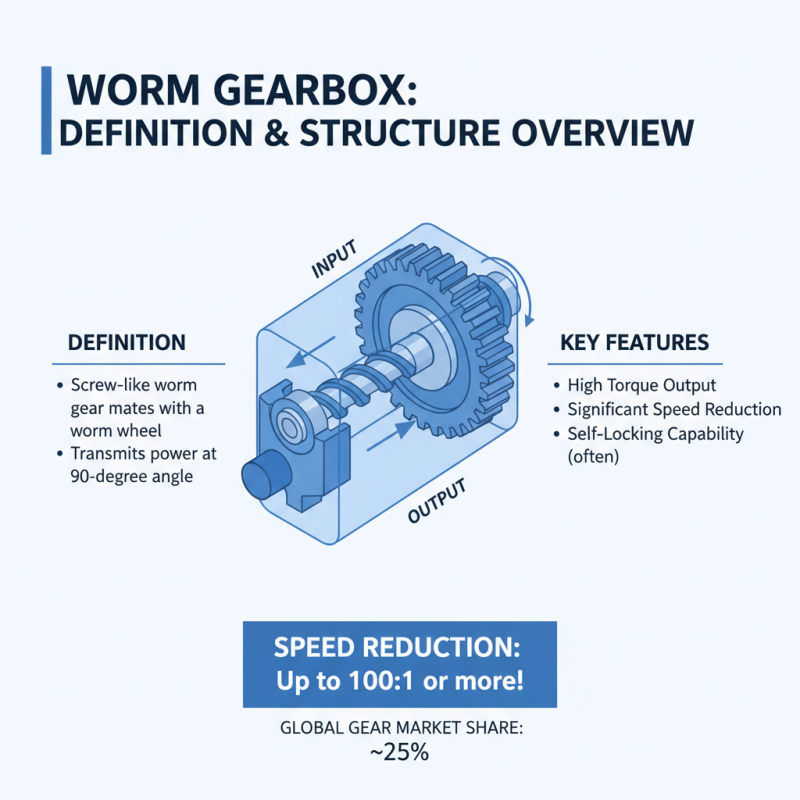

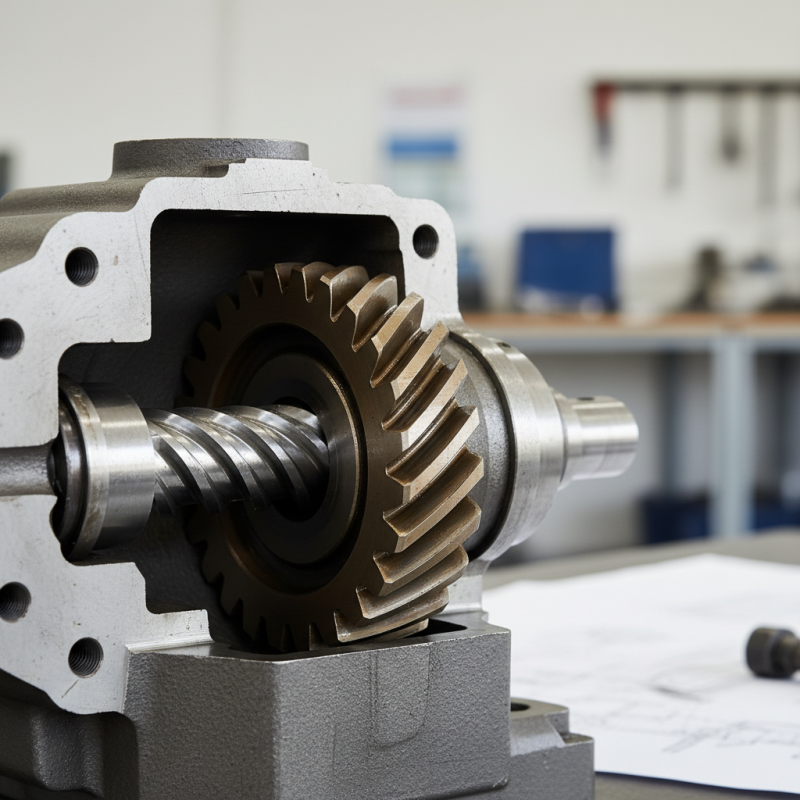

What is a Worm Gearbox? Definition and Structure Overview

Worm gearboxes are fascinating components widely used in machinery. They consist of a worm, which is a screw-like gear, and a worm wheel. This unique structure allows for high torque output and significant speed reduction. In industrial applications, worm gearboxes can reduce speed by up to 100:1 or more, depending on the configuration. According to a recent market analysis, the worm gearbox segment accounts for approximately 25% of the global gear market.

The effectiveness of worm gearboxes lies in their compact design. They can provide substantial torque without requiring much space. This is crucial in applications where design constraints limit size. For instance, they are often found in conveyor systems, elevators, and even robotic systems. However, their efficiency tends to be lower compared to other gear types, achieving around 50-70% efficiency in many cases. This can lead to heat buildup, which requires careful consideration during installation.

Moreover, while worm gearboxes excel in specific applications, they also have limitations. The sliding contact between the worm and wheel results in wear over time. This necessitates regular maintenance and potential replacement. Additionally, the initial cost can be higher compared to other gear systems. Users should weigh these factors against their operational needs. Understanding these elements can help in making informed decisions regarding their use.

Key Components of a Worm Gearbox and Their Functions

Worm gearboxes are fascinating mechanical devices. They consist of several key components, each playing a vital role. The worm is a screw-like gear that meshes with a worm wheel. This engagement creates a high gear reduction, enabling significant torque. This design allows for smooth operation and helps in maintaining a compact size.

The worm wheel supports the worm, transferring motion and load. It usually has a large number of teeth which aids in torque multiplication. The bearings within the gearbox provide stability. They help reduce friction and wear, extending the lifespan of the assembly. However, improper bearing alignment can lead to premature failure.

Another important component is the casing. It protects internal elements from dirt and damage. Nonetheless, some designs lack adequate sealing. This can lead to contamination and inefficiency. Regular maintenance and inspection are crucial to ensure all components function correctly. Each element contributes to the overall performance of the worm gearbox, yet attention to detail can make all the difference.

How Worm Gearboxes Work: The Mechanics of Power Transmission

Worm gearboxes are unique mechanisms used to transfer power. They consist of a worm and a gear. The worm resembles a screw, while the gear is similar to a cogwheel. This design allows for high torque and low speed, making it ideal for applications that require significant force and precision.

The mechanics behind worm gearboxes are fascinating. When the worm turns, it engages the gear, creating a strong connection. This setup provides a mechanical advantage. However, the angle of the worm affects efficiency. A steeper angle increases torque but may lead to more friction. This friction can result in heat, which is a challenge during operation.

In real-world applications, you might encounter limitations in worm gear designs. For example, if overloaded, the worm can wear out faster than anticipated. This is something to consider during installation. Engineers must evaluate load requirements carefully. Balancing the load and ensuring proper lubrication are key factors for longevity in worm gear systems.

Power Transmission Efficiency of Worm Gearboxes

This bar chart illustrates the power transmission efficiency of worm gearboxes at different ratios. The data shows that as the torque ratio increases, the efficiency slightly decreases due to inherent losses in the design.

Advantages of Using Worm Gearboxes in Industrial Applications

Worm gearboxes are increasingly favored in industrial settings due to several advantages. These gear systems offer high torque multiplication in a compact design. According to industry reports, they can provide gear ratios that reach 100:1 or even higher. This makes them ideal for applications requiring slow, powerful movement. The unique design also allows for self-locking capabilities, which can enhance safety in industrial machinery.

Another significant advantage is their shock-load resistance. Worm gearboxes can handle unexpected loads, reducing wear and tear on the components. A study by the American Gear Manufacturers Association (AGMA) notes that the efficiency of a worm gearbox typically ranges from 50% to 90%. While this is impressive, it can vary based on lubrication and load conditions.

Moreover, when using worm gearboxes, alignment can be less critical compared to other types. This can simplify the installation process. However, it's important to acknowledge that they often generate more heat and noise. Proper maintenance and cooling systems are essential to mitigate these issues. This raises questions about long-term reliability. Balancing efficiency and operational costs becomes vital for users.

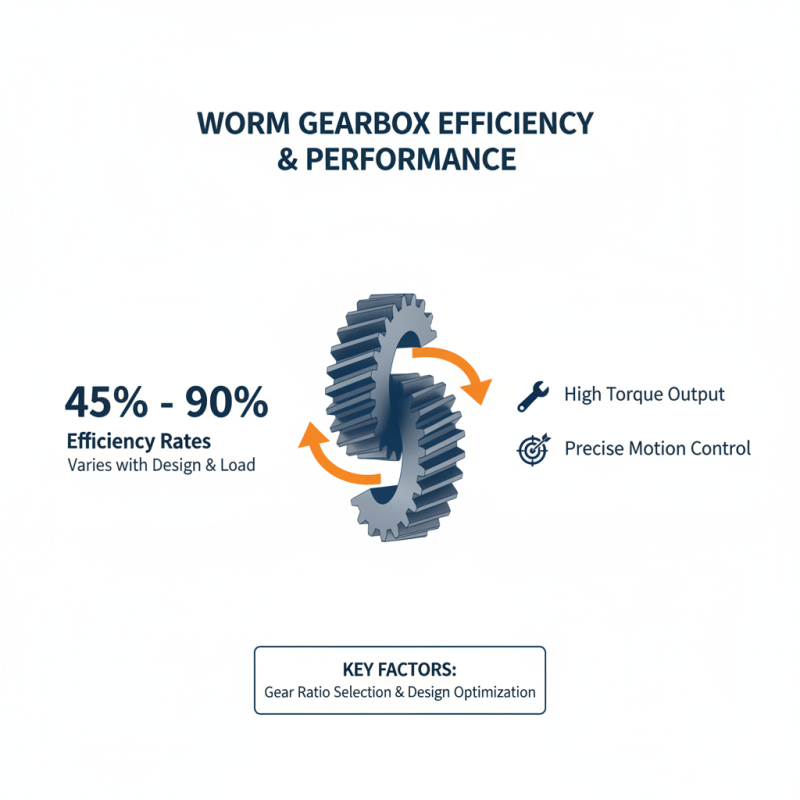

Typical Efficiency Rates and Performance Metrics of Worm Gearboxes

Worm gearboxes are essential in numerous applications, particularly when high torque and precise motion control are needed. Their typical efficiency rates range from 45% to 90%, depending on design and load conditions. This variation highlights the importance of correctly selecting gear ratios. The design focuses on maximizing performance while recognizing there might be limitations under specific circumstances.

Performance metrics vary widely. For example, a common metric is the input-to-output speed ratio. Worm gearboxes can achieve a speed reduction ratio of up to 100:1. However, this increased torque often comes with decreased efficiency. Under heavy loads, worm gearboxes can experience significant heat generation, sometimes raising operational temperatures beyond ideal conditions. This inefficiency can lead to premature wear and reduced lifespan.

It's noteworthy that efficiency often decreases with increased loading. Real-world applications reveal that many setups operate at less than optimal performance. Data shows that running a worm gearbox above its recommended load can cut efficiency by 20%-30%. Such findings urge engineers to continually evaluate and adapt designs to ensure peak efficiency. Balancing load and speed can be a complex task, but it is vital for operational success.
