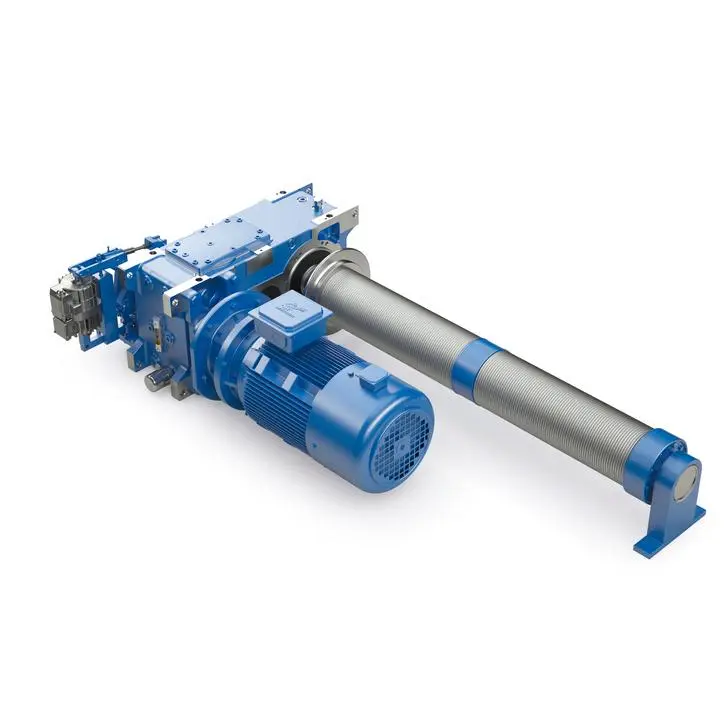

SIEMENS With Servo Motor Gearmotor

The system is easy to install, features a fast start-up, and is extremely user friendly. Thanks to Safety Integrated, the Safe Torque Off (STO) safety function can be used with any SINAMICS G110M with no additional external components. The compact device, available in two sizes (FSA, FSB), is space saving and offers flexible application fields. In addition, it is integrated into the TIA Portal – the intuitive engineering framework from Siemens – which allows efficient integration into a superordinate SIMATIC controller.

    Contact us
    product details

    Application areas

    Conveyor technology
    Warehouse and distribution logistics
    Baggage and cargo handling (e.g. airport logistics)
    Mail and package shipping
    Automotive industry
    Other decentralized applications, such as:
    Simple pumps, fans, and compressors
    General engineering

    Benefits of SIMOGEAR and SINAMICS G110M in combination

    Fast and easy start-up – even on-site
    Versatility and maximum flexibility
    Compact design
    Integrated safety function
    Integrated communications
    Integrated into Totally Integrated Automation

    Technical data

    Voltage / frequency 3-phasig 380 – 500 V –10 %/+6 % mit 50/60 Hz +/–5%
    Power range 0,37 – 4kW
    Protection class bis IP66
    Ambient temperature -10 °C bis 40 °C ohne Derating / bis 55 °C mit Derating
    EMC nach IEC 61800-3, Kategorie 2
    Standards CE, UL, cUL, c-Tick
    Safety technology STO nach IEC 61508 SIL2, ISO 13849 PLd (verfügbar ab SINAMICS G110M Firmware Version 4.7; ab ca. 15.06.2014)
    Communication USS, Modbus/PROFIBUS/PROFINET, Ethernet IP
    Regulatory procedure U/f, SLVC
    Functions Quick Stop, Endschalterfunktion, freie Funktionsbausteine (SPS-Funktion)
    Braking integrierter Bremswiderstand (optional), Motorhaltebremse, Software-Bremsverfahren
    Order configurations Umrichter stand alone zur Selbstmontage / als komplette Antriebseinheit mit SIMOGEAR
